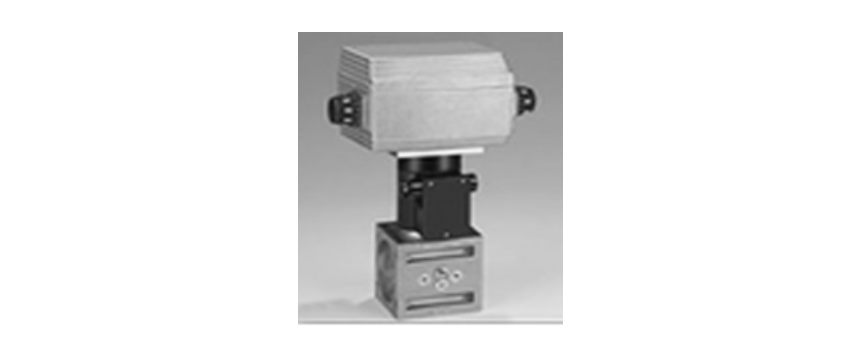

Control valves RV, control valves with solenoid valve RVS


Control valves for controlling continuously regulated burner processes, linear ratio between input signal and flow rate, control ratio 100:1, for gas and air, EC type tested and certified.

Size: 2 to 3,
DN: 25 to 100,
valve seat: A to Z,
connection: MODULINE system or flange,
pe: max. 150, 200, 360, 500, 1000 mbar,
mains voltage: 24 V AC,
110/120 V AC or 220/240 V AC,
input signal: continuous or three-point step.

The following versions are available:
valves for biologically produced methane,
valves with Viton seal.
